Building a SalesLogix Login Screen
Description:  Building a login screen for your custom SalesLogix addon application is an important part of building a polished and professional looking addon. This article will look at various types of login screens that you can easily build into your SalesLogix applications. (Updated for 6.2!)

Category:  SalesLogix OLE DB Provider
Author:  Ryan Farley
Submitted:  9/15/2004

Stats:
Article has been read 17190 times

Rating: - 5.0 out of 5 by 3 users


fiogf49gjkf0d
Building a SalesLogix Login Screen

Building a login screen for your custom SalesLogix addon application is an important part of building a polished and professional looking addon. This article will look at various types of login screens that you can easily build into your SalesLogix applications.


Login Screens for Client Applications vs. Server Applications

There are a few different kinds of addon applications that you might build for SalesLogix which include server applications and client applications. A server application would be an application installed for a server, where the Sales Client might not be installed. An example might include a service or other process that runs to batch process data, assign leads, or some other type of server side application. As for client applications, there really are two different types. A client application that relies on and interacts with the running Sales Client and a client application that is launched independently of the running sales client. This article will focus on the latter (the first type of client application mentioned should really not have a log in screen and will be discussed in a future article). An example of this kind of client application might be an application that performs some kind of data analysis, processes sales orders, or other type of application where the user might expect it to work with SalesLogix data, but not really in context of working with the Sales Client.

Another way to look at the differences between these kinds of applications might be from the perspective of the user. If your user is a SalesLogix user that uses the Sales Client, you would want to have a login screen that reflects the information they are able to provide to log into the Sales Client. If the user is not a SalesLogix user, or the application is a server side only application then you might have a login screen that supports the information needed to log into that type of application.

Either way, your goal is to collect the necessary information so that you can build a connection string and make a connection to the SalesLogix database via the provider. Before we look at each type of login screen, let's take a look at the elements we need to collect to make a successful login.


The Server Application Login Screen

Let's take a look at the elements we'll need for a login for a server application.
  • Username
  • Password
  • Server
  • Connection/Alias
  • ReadWrite Password
    (We'll get to this one later on)

Why those values? Keep in mind, this is a server application. We likely don't have the Sales Client installed. What we need to end up with is the values we need to construct a connection string (See Understanding the SalesLogix 6.2 Connection String or Understanding the OLEDB Connection String For Versions 6.1 and Prior). Let's start with providing a list of SalesLogix Servers to the user.


Obtaining a List of SalesLogix Servers

To obtain the list of SalesLogix servers on our local network we will use the slx_getServerList() SalesLogix procedure. To use this procedure we will need to use a special connection string. Since at this point, we don't have a username, we don't have a password. We will use this special connection string to open an OleDbConnection without authenticating.

Provider=SLXOLEDB.1;Data Source=;Initial Catalog=NO_ALIAS; Extended Properties="Port=1706;Log=On"


Let's take a look at the code that uses this connection string to establish a connection and execute the slx_getServerList procedure.

public static ArrayList GetServerList()
{
	ArrayList list = new ArrayList();
	string connstring = "Provider=SLXOLEDB.1;Data Source=;Initial Catalog=NO_ALIAS;
                              Extended Properties=\"Port=1706;Log=On\"";
	OleDbConnection conn = new OleDbConnection(connstring);

	try
	{
		conn.Open();
		OleDbCommand cmd = new OleDbCommand("slx_getServerList()", conn);
		OleDbDataReader r = cmd.ExecuteReader(CommandBehavior.CloseConnection);

		while (r.Read())
		{
			list.Add(r.GetString(0));
		}
		r.Close();
	}
	catch
	{
		throw;
	}
	finally
	{
		conn.Dispose();
	}
	return list;
}


Simple enough. This code executes the procedure and fills the results in an ArrayList. If you were using old ADO from VB/VBScript then this would be returning a Recordset. Now we need to get the list of aliases on a specific server.


Obtaining a List of Aliases for a Server

Once your user selects a server from your list, you will need to allow for the selection of an alias on that specific server. To obtain a list of aliases on a server we will use the sp_aliasList() SalesLogix procedure. Just as the previous code to execute the slx_GetServerList() procedure, we'll use a special connection string to make the connection.

Provider=SLXOLEDB.1;Data Source=MYSLXSERVER;Initial Catalog=NO_ALIAS; Extended Properties="Port=1706;Log=On"


This time we include the name of the SalesLogix server (this would have been selected by the user already). When we use this connection string, specifying the server name (indicated as MYSLXSERVER in the above example) and execute the sp_aliasList procedure. Let's take a look at the code.

public static ArrayList GetAliasList(string server)
{
	ArrayList list = new ArrayList();
	if (!server.Equals(string.Empty))
	{
		string connstring =
		        string.Format("Provider=SLXOLEDB.1;Data Source={0};Initial Catalog=NO_ALIAS;
                                         Extended Properties=\"Port=1706;Log=On\"", server);

		OleDbConnection conn = new OleDbConnection(connstring);

		try
		{
			conn.Open();
			OleDbCommand cmd = new OleDbCommand("sp_aliasList()", conn);
			OleDbDataReader r = cmd.ExecuteReader(CommandBehavior.CloseConnection);

			while (r.Read())
			{
				list.Add(r.GetString(0));
			}
			r.Close();
		}
		finally
		{
			conn.Dispose();
		}
	}
	return list;
}


We now have our list of aliases on the SalesLogix server that we can present to our user. The server and alias, along with the username and password, give us all the information that we need to be able to construct a full connection string for our application to make a connection.


Making the Connection String

With the information we've now obtained from our user, we can now create a full SalesLogix Connection String.

public static string GetConnectionString(string user, string password, string server, string alias)
{
	StringBuilder sb = new StringBuilder();
	sb.Append("Provider=SLXOLEDB.1;");
	sb.Append("User ID=");
	sb.Append(user);
	sb.Append(";Password=");
	sb.Append(password);
	sb.Append(";Initial Catalog=");
	sb.Append(alias);
	sb.Append(";Data Source=");
	sb.Append(server);
	sb.Append(";Extended Properties=\"PORT=1706;LOG=ON\"");

	return sb.ToString();
}


That all great, but something is missing. The ReadWrite password. This is a required part of the connection string if you want to read and write data via this connection. Sure, you could add that to the login dialog, but you have everything you need to be able to programatically retrieve the ReadWrite password for the user (it's likely that they don't know what that password is anyway!). Luckily, you can refer to the article I wrote on that subject. Take a look at Connecting with the RWPassword From External Applications. Great. Now we can just slap all this together into a complete login for our server application.


The Client Application Login Screen

So why won't what we just learned for server applications work for a client application? Well, technically it would work. However, these are not details that the end user is used to providing to log into a SalesLogix application. They have their username, their password, and if we're lucky they might know what the "Log in to" box is about. When you log into the Sales Client, these are the values the user provides. Chances are, they don't even know what the alias or "Log in to" box is anyway. So what we want to do is present a login screen that is similar to the Sales Client login screen. We want the user to provide their username, password, and select the alias from a list (which is the same list of aliases they see in the Sales Client login screen). That's it.

However, you don't have a procedure to get these for you. These are specific to the user on their respective machine. We'll have to dig these out of the registry.

The location where these local aliases are saved is in HKEY_CURRENT_USER under the following hive:

HKEY_CURRENT_USER
Software\SalesLogix\ADOLogin


You will find there 10 defined connections. These are what you are going to display in your login box. As a side note, I should mention that there is a possibility that you'll find more than 10 listed there (but that's another article). Also there can be globally defined aliases found in HKEY_LOCAL_MACHINE under Software\SalesLogix\CUD\ADOLogin. We'll just focus on the ones found in HKEY_CURRENT_USER for this article.

Reading these values from the registry is a simple task. However, where the real value comes from is putting the peices together to contruct a connection string (along with the username and password provided by the user). If we examine the string values under each key (from Connection1 to Connection10) then we'll see the following string values:

  • Alias
    This is the name of the alias (ie: what is displayed on the login screen)
  • Data Source
  • DBPassword
  • DBUser
  • Extended Properties
  • Initial Catalog
  • Provider

If we take each of these values and bring them altogether we'll have our connection string. One thing to note here, the DBUser and DBPassword are saved if the user typed them in the connection properties dialog, however they are not used by the connection so we won't use them either (password is also encrypted and no, the SLXRWEL library won't decrypt it). We'll be getting those values from the user. What we are going to do in our code is fill an ArrayList, just as before, with the locally defined aliases. I'll create a LocalAlias class we can use to easily pass around these complete aliases to make things easier on us. The LocalAlias class will be defined as follows.

public class LocalAlias
{
	public LocalAlias() {}

	public LocalAlias(string name)
	{
		this._name = name;
	}

	public string Name
	{
		get { return this._name; }
		set { this._name = value; }
	}

	public string DataSource
	{
		get { return this._datasource; }
		set { this._datasource = value; }
	}

	public string User
	{
		get { return this._user; }
		set { this._user = value; }
	}

	public string Password
	{
		get { return this._passwd; }
		set { this._passwd = value; }
	}

	public string ExtendedProperties
	{
		get { return this._extendedprops; }
		set { this._extendedprops = value; }
	}

	public string InitialCatalog
	{
		get { return this._initcatalog; }
		set { this._initcatalog = value; }
	}

	public string Provider
	{
		get { return this._provider; }
		set { this._provider = value; }
	}

	public string ConnectionString
	{
		get
		{
			StringBuilder sb = new StringBuilder();
			sb.Append("Provider=");
			sb.Append(_provider);
			sb.Append(";User ID=");
			sb.Append(_user);
			sb.Append(";Password=");
			sb.Append(_passwd);
			sb.Append(";Data Source=");
			sb.Append(_datasource);
			sb.Append(";Initial Catalog=");
			sb.Append(_initcatalog);
			sb.Append(";Extended Properties=\"");
			sb.Append(_extendedprops);
			sb.Append(";\"");

			return sb.ToString();
		}
	}

	public override string ToString()
	{
		return this._name;
	}

	private string _name = string.Empty;
	private string _connstr = string.Empty;
	private string _datasource = string.Empty;
	private string _user = string.Empty;
	private string _passwd = string.Empty;
	private string _extendedprops = string.Empty;
	private string _initcatalog = string.Empty;
	private string _provider = string.Empty;
}


The purpose of this class is to give us an easy to use class that we can simply just set the string values we get from the registry and then it will construct the string for us (we can also bind a list of these to a ComboBox. The name will show but we can get to the full connection string and any other values easily). Let's look at the code to fill these objects from the registry.

public static ArrayList GetLocalUserAliases()
{
	ArrayList list = new ArrayList();
	RegistryKey key = null;
	try
	{
		key = Registry.CurrentUser.OpenSubKey(@"Software\SalesLogix\ADOLogin", false);
		string[] subnames = key.GetSubKeyNames();

		foreach (string name in subnames)
		{
			RegistryKey subkey = key.OpenSubKey(name, false);
			string aliasname = (string)subkey.GetValue("Alias");

			if (!aliasname.Equals(string.Empty))
			{
				LocalAlias alias = new LocalAlias(aliasname);
				alias.DataSource = (string)subkey.GetValue("Data Source");
				alias.User = (string)subkey.GetValue("DBUser");
				alias.ExtendedProperties = (string)subkey.GetValue("Extended Properties");
				alias.InitialCatalog = (string)subkey.GetValue("Initial Catalog");
				alias.Provider = (string)subkey.GetValue("Provider");

				list.Add(alias);
			}
			subkey.Close();
		}
	}
	finally
	{
		key.Close();
	}
	return list;
}


That gets the list of LocalAlias objects filled for us. Now we can bind the list to a ComboBox and when the user selects one we can populate the entered username and password and read the ConnectionString property for the entire connection string. We will still have to programatically discover the ReadWrite password as before, but that's just fine.

Using this list of aliases is easy as well. We can bind it or use it to fill a ComboBox. Then when the user clicks OK on our login screen grab the LocalAlias object as the selected item on the ComboBox.

LocalAlias alias = (LocalAlias)comboAlias.SelectedItem;
alias.User = textUser.Text;
alias.Password = textPassword.Text;

string connstring = alias.ConnectionString;



Downloading the Sample Application

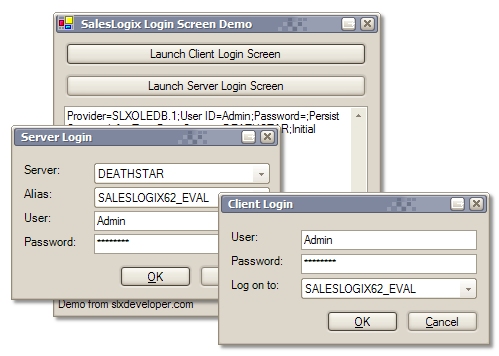

This article provides a sample application that you can use to see the code outlined here in action. Take a look at the code and start building your generic and reusable login screens for your future SalesLogix addons today. See related articles section below for the sample application.


Download the sample code (C#)


Wrapping it up

Creating login screens for your applications is an important part of building a professional looking SalesLogix addon. Doing the login screen right gives a familiar way for SalesLogix users to access your application. Don't overlook this important detail. However, be smart, built it once and reuse the login screen for any application you write for SalesLogix.

Until next time, happy coding.
-Ryan
